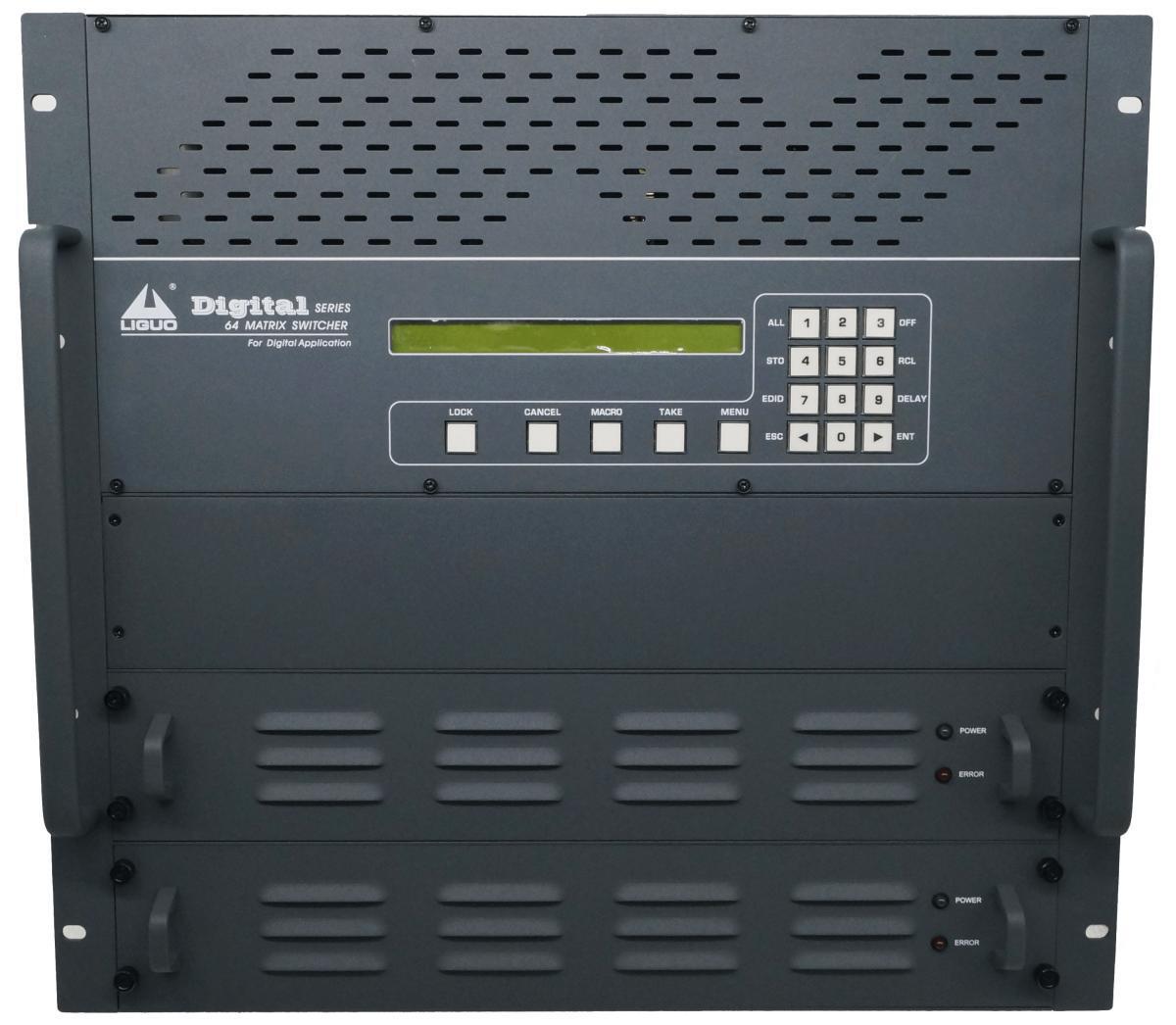

Digital-64 Hybrid Matrix Switcher

图文详情

Digital-64 is a high performance 8x8 to 64x64 4K@60Hz (4:2:0) modular matrix for switching and distribution of multi−format audio−visual signals. The chassis has 16 card slots for flexible insertion of modular matrix cards, which 8 input card slots and 8 output card slots.

It is 4K–capable, which up to 10.2Gbps data rate.

Hardware
Feature	Indicator
Input port	High resolution: support 4K60 4:2:0 HDCP compliant Support intelligent EDID processing Support cards including DVI, HDMI, VGA, DGKat.
Output port	High resolution: support 4K60 4:2:0 HDCP compliant Support cards including DVI, HDMI, VGA, DGKat.
Control options	Front panel buttons / RS-232 / TCP / UDP / web-UI
Power Supply	100-240V AC, 50/60Hz
Configure storage	Yes
Environmental Conditions	Operating Temperature: 0° to + 40°C (32° to 104°F) Storage Temperature: –40° to +70°C (–40° to 158°F) Humidity: 10% to 90%, RHL non–condensing
Dimensions	W, D, H (48.30cm x 36.00cm x 44.00cm)
Weight	24kg approx.
Software
Feature	Indicator
Preset Configuration	Yes
Protocol commands	Yes
Build-in web server (web-UI)	Yes
